Yawal TN 77 N
Thermally insulated aluminium window and door system used for fixed and opening elements of the envelope.
Barcelona · Catalunya
Barcelona
Residence
Large-format aluminium glazing for a contemporary private residence, combining Yawal TN 77 N windows and DP 180 sliding systems with high-performance Planitherm 4S glass.
Project approachYawal
Large glass surfaces, installed as part of the architecture.
Project approach
Large glass surfaces, installed as part of the architecture.
The challenge

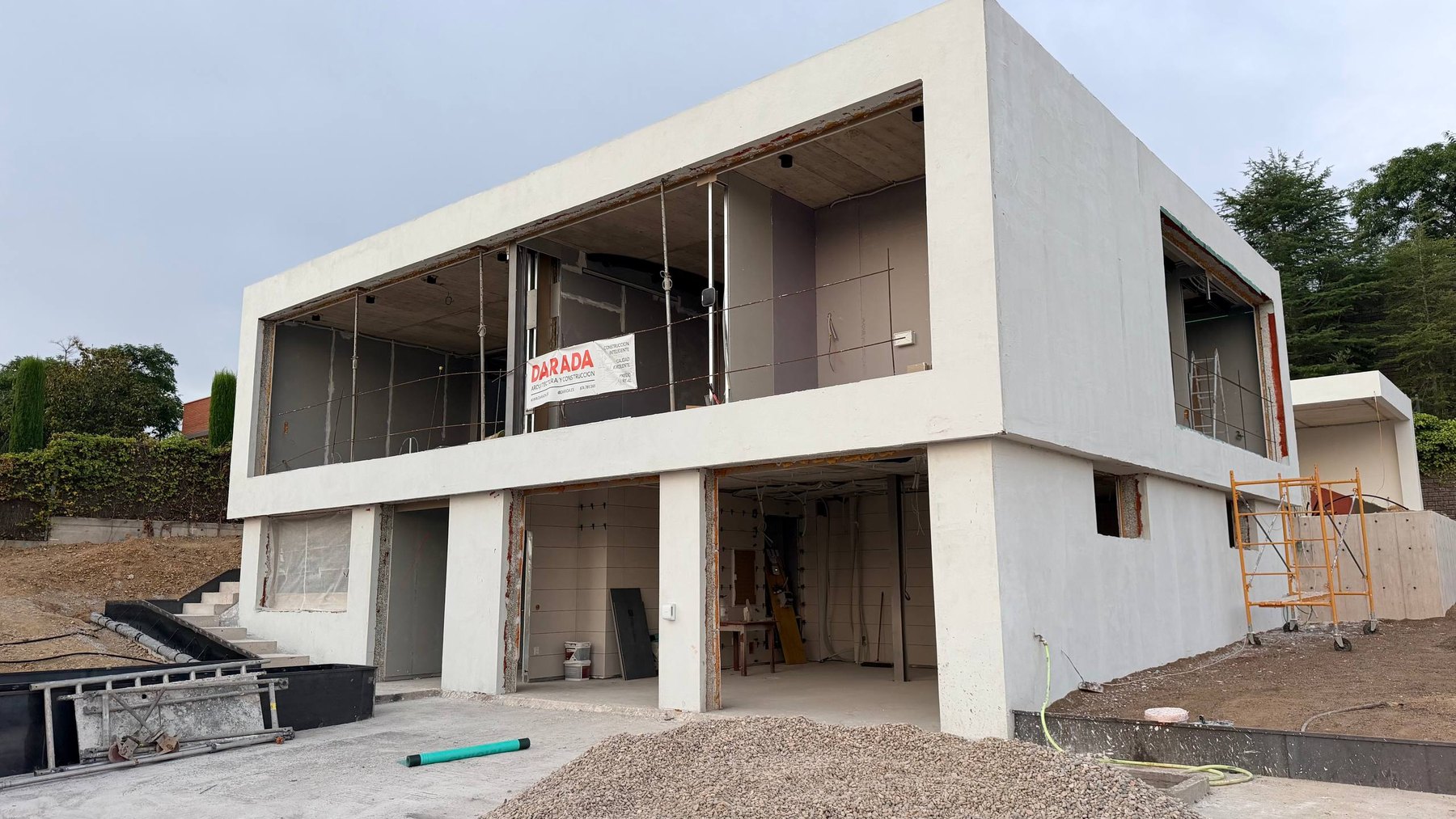

Wide openings across the upper floor called for large glass panes, clean aluminium sightlines and a controlled installation sequence on an active construction site.
The solution

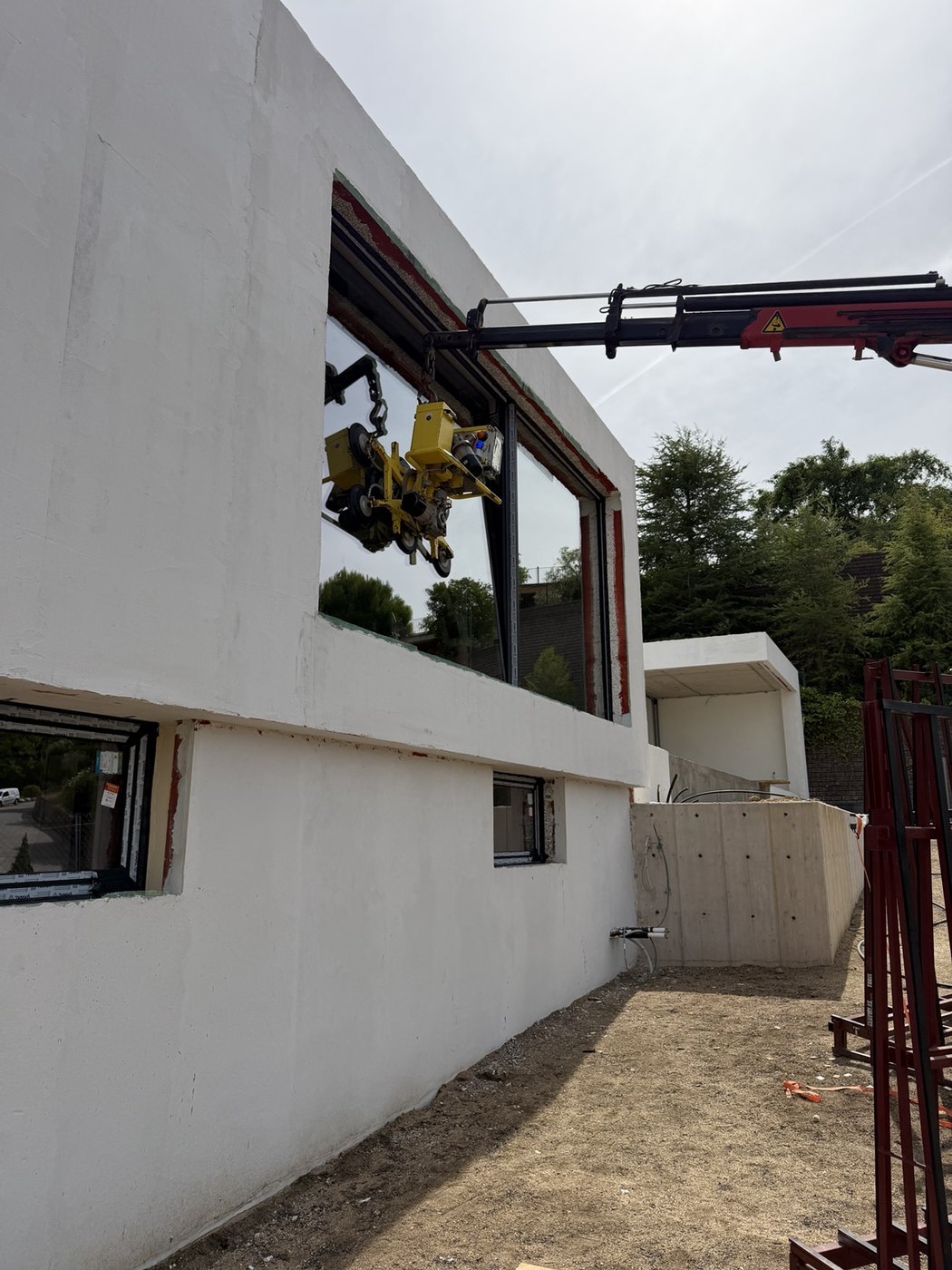

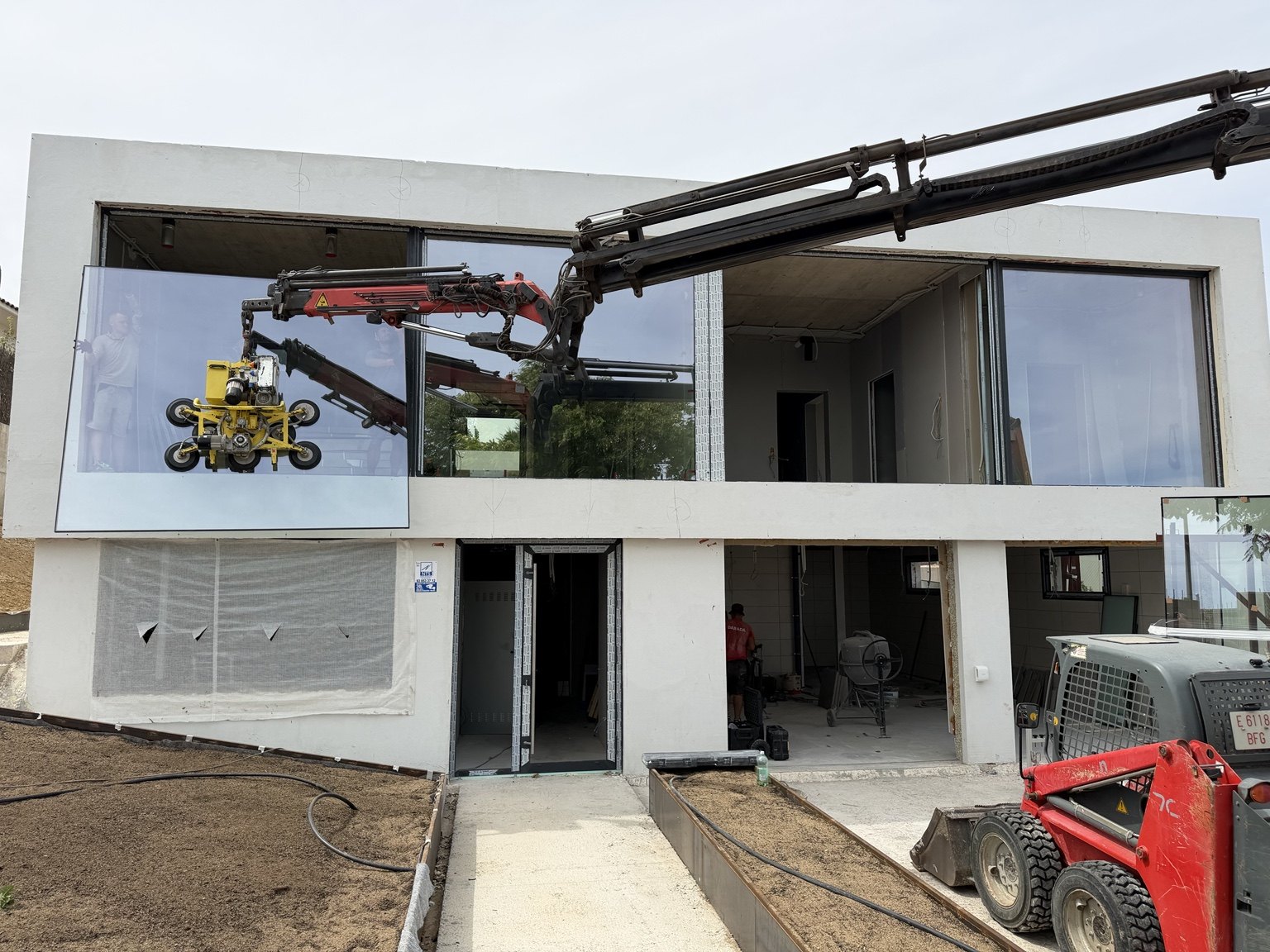

Yawal TN 77 N and DP 180 systems were coordinated with the specified insulated glass units. Large-format panes were positioned using a crane-mounted vacuum lifter to control handling, alignment and installation.
On site

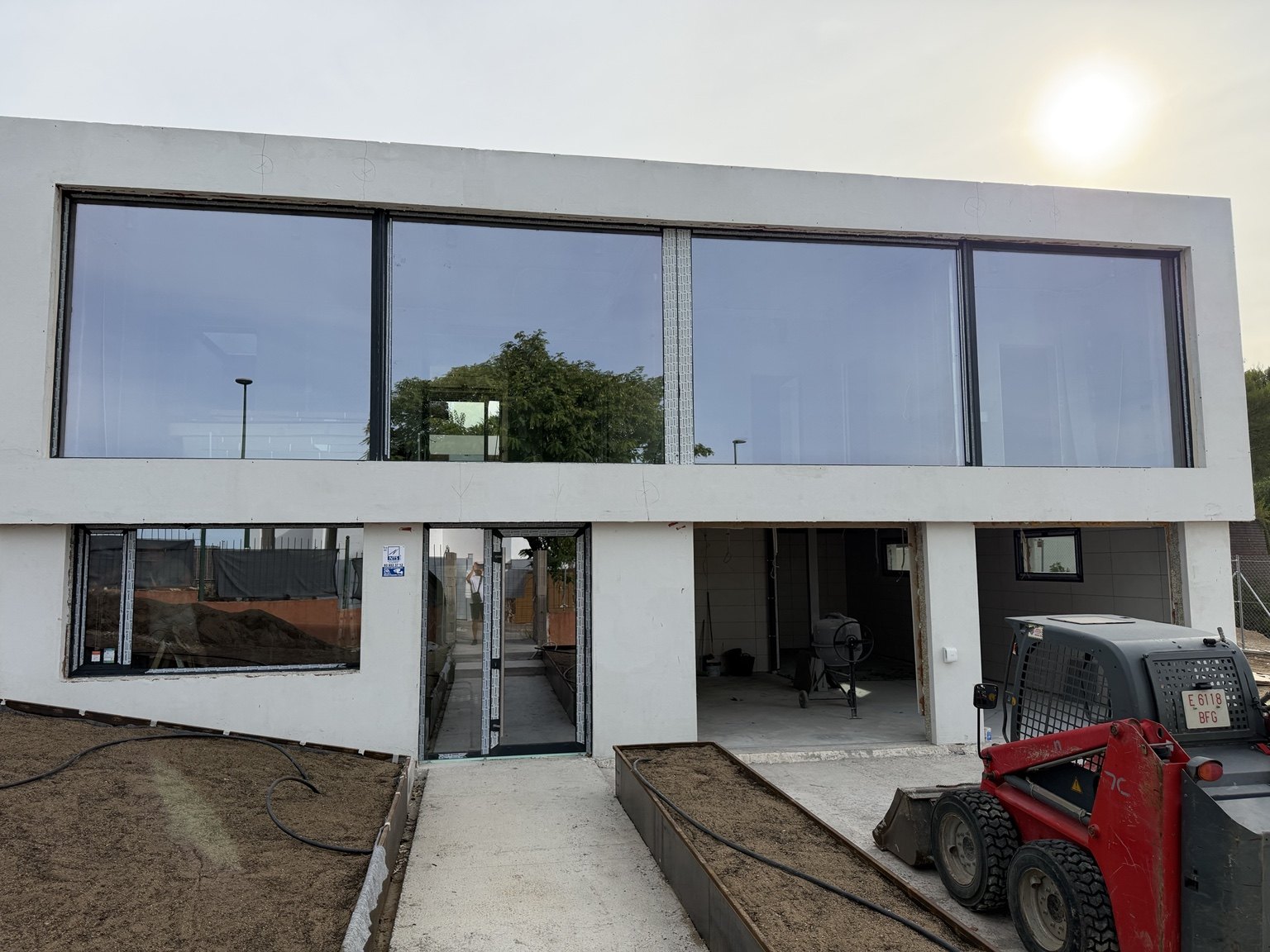

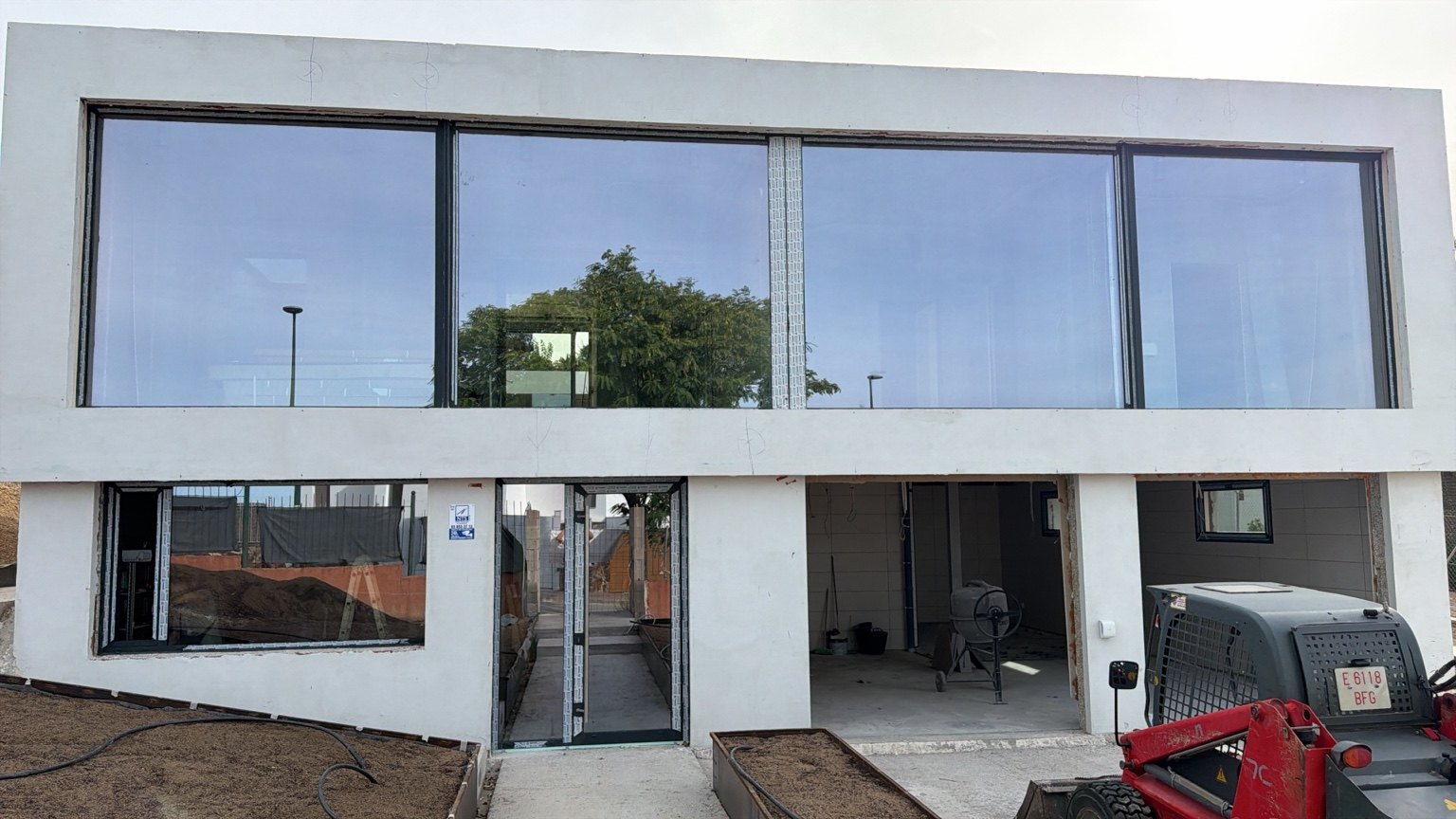

From open structure to a continuous glazed facade.
Installation in motion
Large-format glazing, positioned directly at the opening.
Specification
Two Yawal systems and a solar-control glass build-up.

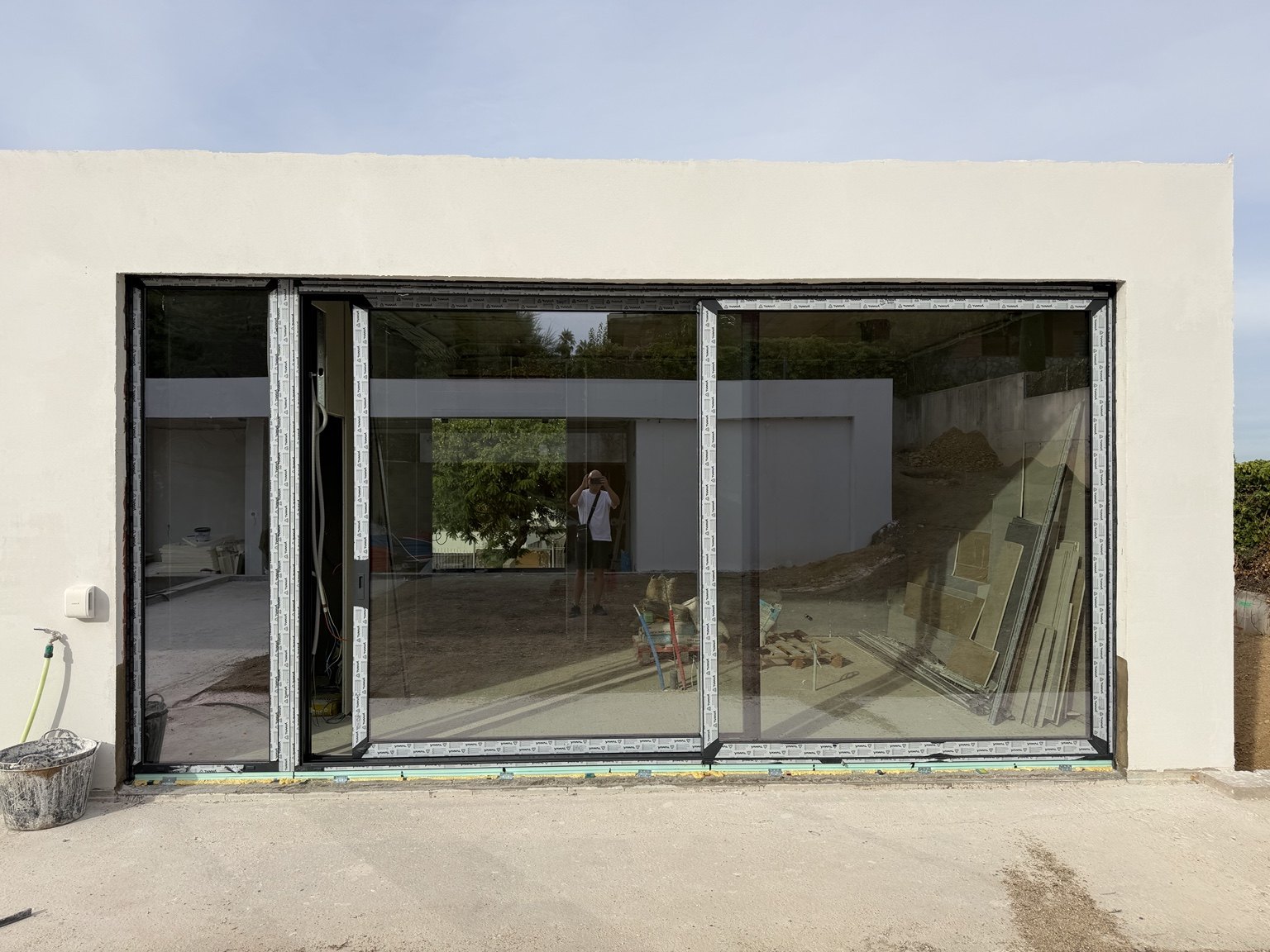

Yawal DP 180
Sliding aluminium system for large glazed openings, developed around generous glass area and everyday operation.
Planitherm 4S glazing
8 mm tempered Planitherm 4S / 16 mm warm-edge Argon cavity / 5+5 laminated inner pane.
Installation
Large panes require controlled handling.

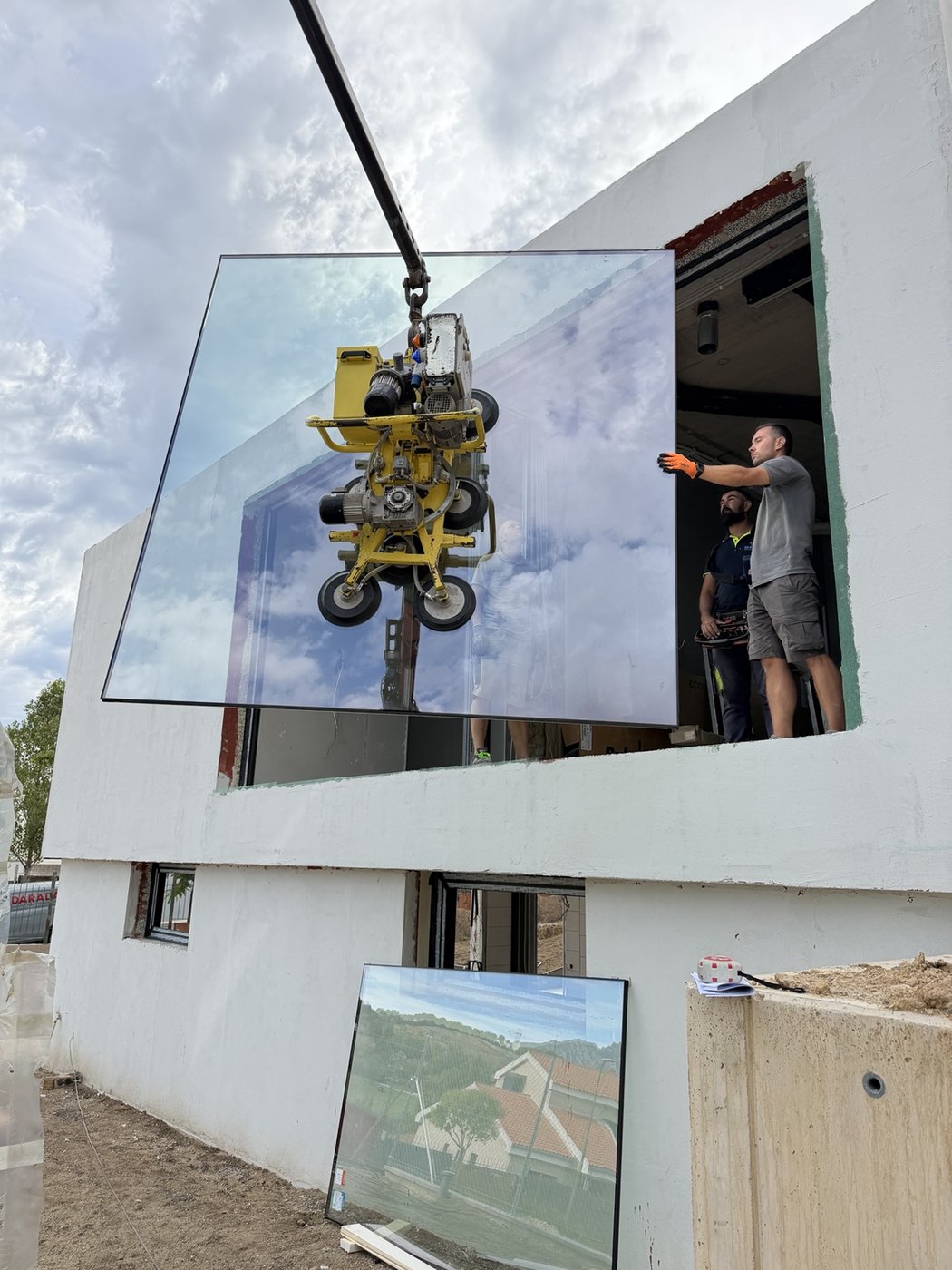

The glazing sequence was planned around access and pane dimensions. A crane manipulator and vacuum lifting equipment allowed the glass to be transferred directly to the openings with controlled positioning.
